JLG 600AJ HC3

Articulated Diesel Boom Lifts
Avilable for
Rent
/
Buy

Key SpecIfications

  • Horizontal Outreach
    12.37
    m
  • Machine Weight
    11819
    kg
  • Up & Over Height
    8.10
    m
  • Working Outreach
    m
Download
Brochure
Download
Specifications
JLG 600AJ HC3

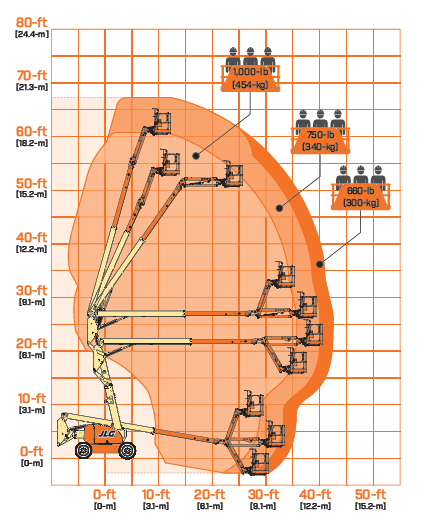

Reach Dimensions

No drawings avalable.
  • Working Height
    20.30
    m
  • Platform Height
    18.30
    m
  • Horizontal Outreach
    12.37
    m
  • Up & Over Height
    8.10
    m

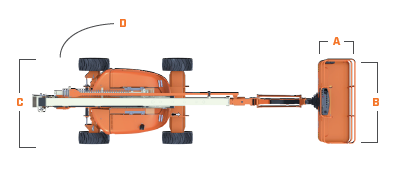

Machine Dimensions

No drawings avalable.
A - Platform Size (W x L) = 0.91 m x 2.44 m
B - Overall Width = 2.49 m Overall Length = 9.14 m
C - Tailswing =zero
G - Ground Clearance = 0.29 m

Key Features & Benefits

  • Articulated Diesel Booms Lifts are ideal for working over and around obstacles on the job site, not easily accessible by a Telescopic (straight) Boom Lift.
  • Offer exceptional outreach, high capacity, versatile performance & easy maintenance.
  • Ideal for rough terrain.
  • Elevates workers quickly, easily and efficiently for optimum productivity.
  • Offers a large working envelope.
  • Excellent manoeuvrability with turntables that rotate 360°.
  • Driveable when fully elevated.

Power & Transmission

  • Engine
    Deutz D2.9L4 Tier 4 Final
  • Engine Fuel Type
    Diesel
  • Engine Fuel Tank Capacity
    113.6
    L
  • Auxiliary Power
    12
    V
  • Hydraulic System Capacity
    115.8
    L
  • Pump Motors
    116
  • Diesel engine - DEUTZ D 2.9L Tier 4 Final 49 hp
  • Engine distress warning/shut down system
  • Gull wing steel turntable hoods
  • Swing-out engine tray
  • Control ADE® - Advanced Design Electronics System
  • Hydrostatic drive transmission
  • Horn

Cab

Platform

  • 0.91 m x 2.44 m low mount platform
  • Side entry with drop bar mid rail
  • Multiple function operation
  • Full proportional drive joystick control with integral thumb steer switch
  • Full proportional main boom & swing joystick control
  • Multiple speed control for lower boom, telescope & platform rotate
  • Selectable creep speed on drive/lift & swing functions
  • 180 ° powered platform rotator
  • Platform console machine status light panel
  • AC power cable to the platform

Telescopic System

Equipment & Accessories

  • tilt alarm & indicator light
  • Foam filled tyres
  • Lifting/tie down lugs
  • Hour meter
  • Ground control selector switch with key lock
  • Platform tool tray
  • 12 V-DC auxiliary power
