Articulated Diesel Booms Lifts are ideal for working over and around obstacles on the job site, not easily accessible by a Telescopic (straight) Boom Lift.
Offer exceptional outreach, high capacity, versatile performance & easy maintenance.
Ideal for rough terrain.
Elevates workers quickly, easily and efficiently for optimum productivity.

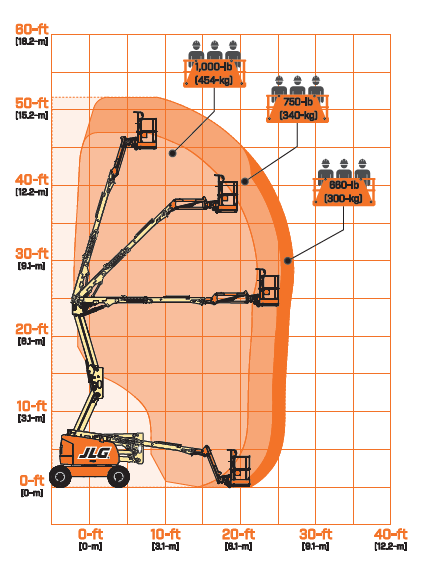

Offers a large working envelope.
Excellent manoeuvrability with turntables that rotate 360°.
Driveable when fully elevated.
Power & Transmission
Engine
Deutz D2.9 L4 Tier 4 Final 49hp
Engine Fuel Type
Diesel
Engine Fuel Tank Capacity
60.57
L
Auxiliary Power
12
V
Batteries
Drive
Electrical System
Generator Set
Generator Set Fuel Type
Generator Set Fuel Tank Capacity
L
Hydraulic System Capacity
66
L
Pump Motors
Diesel engine -Deutz D2.9 L4 Tier 4 Final 49 hp
Cab
Platform

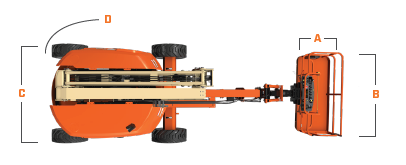

0.76 m x 1.83 m low mount platform
Side entry with drop bar mid rail
Multiple function operation
Full proportional drive joystick control with integral thumb steer switch
Full proportional main boom & swing joystick control
Multiple speed control for lower boom, telescope & platform rotate
Selectable creep speed on drive/lift & swing functions
